| भाग क्रमांक | VVX10T022N00 |
| ब्रँड | Panasonic |
| आकार | 10.1 |
| अर्ज | PAD |
| ठराव | 2560×1600 |
| रचना | LCM |
| चमक | 400 |
| CR | 1000:1 |
| रंग | 16.7M |
| बॅकलाइट | WLED |
| इंटरफेस | eDP |
| पॅनेल ब्रँड | Panasonic |
| पॅनेल मॉडेल | VVX10T022N00 |
| पॅनेल प्रकार | a-Si TFT-LCD , LCM |
| पॅनेल आकार | 10.1 inch |
| ठराव | 2560(RGB)×1600 , WQXGA |
| प्रदर्शन मोड | IPS, Normally Black, Transmissive |
| सक्रिय क्षेत्र | 216.96×135.6 mm |
| बाह्यरेखा | 227.65×147.85×4.37 mm |
| पृष्ठभाग | Hard coating |
| चमक | 400 cd/m² (Typ.) |
| कॉन्ट्रास्ट रेशो | 1000:1 (Typ.) |
| रंग प्रदर्शित करा | 16.7M (8-bit), CIE193172% |
| प्रतिसाद वेळ | 30 (Max.)(Tr+Td) |
| पाहण्याचा कोन | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| वारंवारता | 60Hz |
| दिवा प्रकार | 7S6PWLEDWithout Driver |

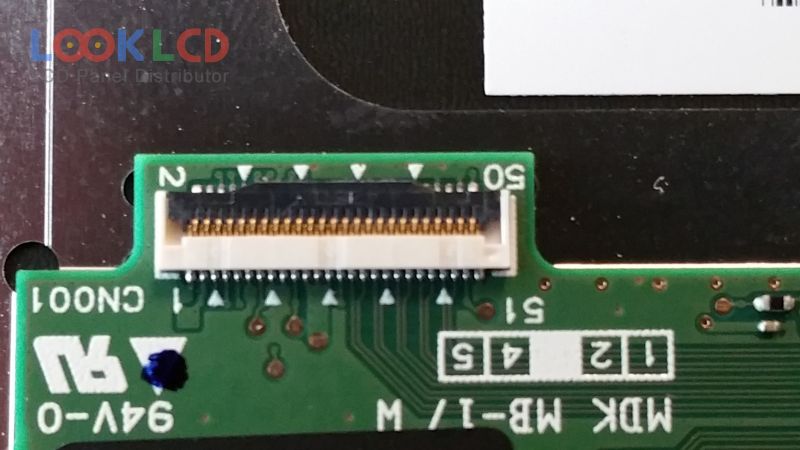

| सिग्नल इंटरफेस | eDP (4 Lanes), 51 pins |
| इनपुट व्होल्टेज | 3.7V (Typ.) |
| अर्ज | PAD |
