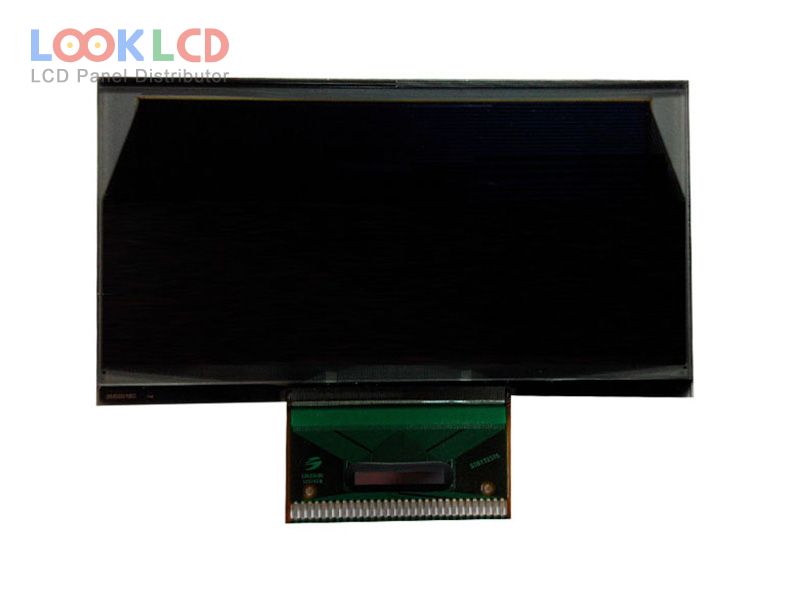

| भाग क्रमांक | OEL9M5001-Y-E |
| ब्रँड | Other |
| आकार | 2.7 |
| अर्ज | IA |
| ठराव | 128×64 |
| रचना | OLED |
| चमक | 80 |
| CR | 10000:1 |
| रंग | Grayscale(Y) |
| बॅकलाइट | self |
| इंटरफेस | CPU/SPI |
| पॅनेल ब्रँड | TRULY |
| पॅनेल मॉडेल | OEL9M5001-Y-E |
| पॅनेल प्रकार | PM-OLED , OLED |
| पॅनेल आकार | 2.7 inch |
| ठराव | 128×64 |
| सक्रिय क्षेत्र | 61.41×30.69 mm |
| बाह्यरेखा | 73×40.24×2.15 mm |
| पृष्ठभाग | |
| चमक | 80 cd/m² (Typ.) |
| कॉन्ट्रास्ट रेशो | 10000 : 1 (Min.) |
| रंग प्रदर्शित करा | Grayscale(Y) (4-bit) |
| पाहण्याचा कोन | 80/80/80/80 (Min.)(L/R/U/D) |
| वारंवारता | 100Hz |
| चालक आयसी | TAB Built-in SSD1325T6R1 |
| सिग्नल इंटरफेस | 8-bit 6800/8080 parallel, SPI, 30 pins |
| इनपुट व्होल्टेज | 3.0/13.0V (Typ.)(VDD/VCC) |
| अर्ज | IA |
