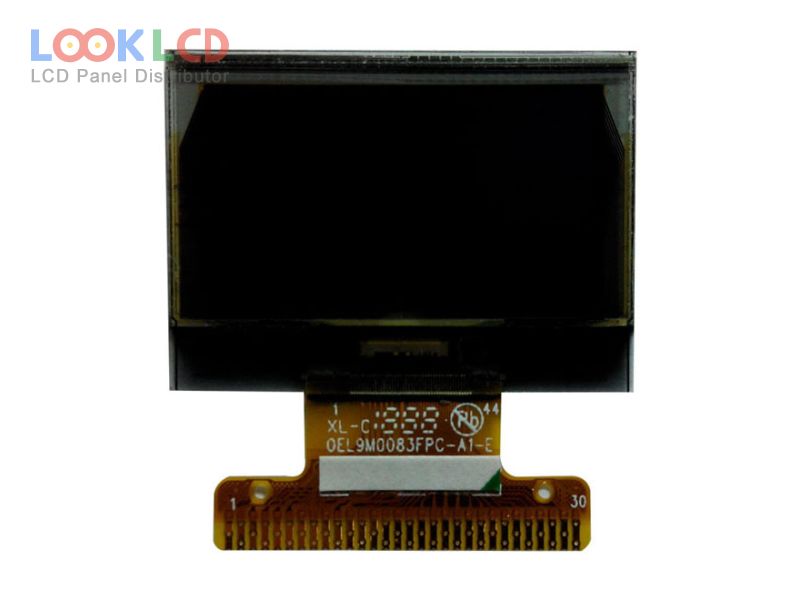

| भाग क्रमांक | OEL9M0083-Y-E |
| ब्रँड | Other |
| आकार | 0.96 |
| अर्ज | |
| ठराव | 128×64 |
| रचना | OLED |
| चमक | |
| CR | 10000:1 |
| रंग | Mono(Yellow) |
| बॅकलाइट | self |
| इंटरफेस | CPU/SPI/I²C |
| पॅनेल ब्रँड | TRULY |
| पॅनेल मॉडेल | OEL9M0083-Y-E |
| पॅनेल प्रकार | PM-OLED , OLED |
| पॅनेल आकार | 0.96 inch |
| ठराव | 128×64 |
| सक्रिय क्षेत्र | 21.74×11.175 mm |
| बाह्यरेखा | 26.7×19.26×1.65 mm |
| पृष्ठभाग | |
| चमक | |
| कॉन्ट्रास्ट रेशो | 10000 : 1 (Min.) |
| रंग प्रदर्शित करा | Mono(Yellow) (1-bit) |
| पाहण्याचा कोन | 80/80/80/80 (Min.)(L/R/U/D) |
| वारंवारता | 100Hz |
| चालक आयसी | COG Built-in SH1106G |
| सिग्नल इंटरफेस | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
