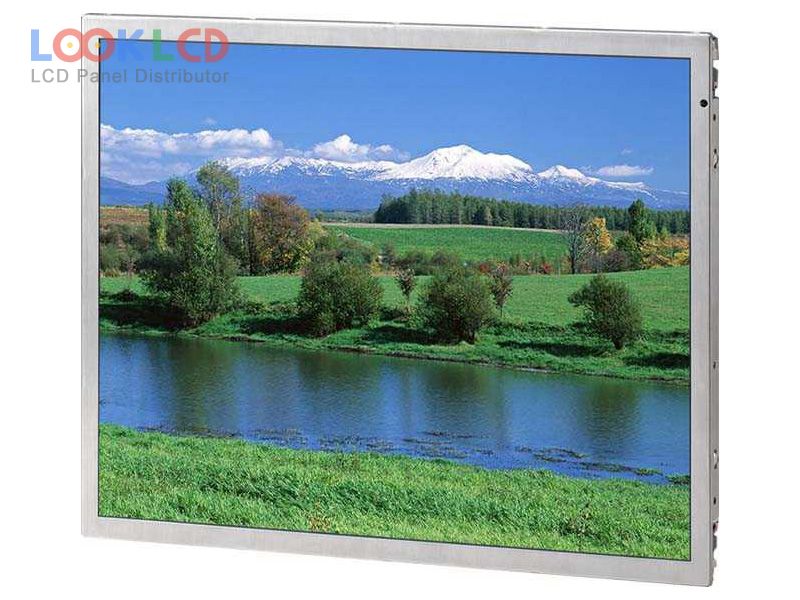

| भाग क्रमांक | NL10276BC30-38B |
| ब्रँड | NLT |
| आकार | 15.0 |
| अर्ज | IA |
| ठराव | 1024×768 |
| रचना | LCM |
| चमक | 250 |
| CR | 700:1 |
| रंग | 16.7M |
| बॅकलाइट | CCFL |
| इंटरफेस | LVDS |
| पॅनेल ब्रँड | NEC |
| पॅनेल मॉडेल | NL10276BC30-38B |
| पॅनेल प्रकार | a-Si TFT-LCD , LCM |
| पॅनेल आकार | 15.0 inch |
| ठराव | 1024(RGB)×768 , XGA |
| प्रदर्शन मोड | UA-SFT, Normally Black, Transmissive |
| सक्रिय क्षेत्र | 304.128×228.096 mm |
| बाह्यरेखा | 326.5×253.5 mm |
| पृष्ठभाग | Antiglare, Hard coating (3H) |
| चमक | 250 cd/m² (Typ.) |
| कॉन्ट्रास्ट रेशो | 700:1 (Typ.) |
| रंग प्रदर्शित करा | 16.7M (8-bit), CIE193172% |
| प्रतिसाद वेळ | 25 (Typ.)(Tr+Td) |
| पाहण्याचा कोन | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| वारंवारता | 60Hz |
| दिवा प्रकार | 2 pcsCCFLWithout Driver |
| सिग्नल इंटरफेस | LVDS (1 ch, 8-bit), 20 pins |
| इनपुट व्होल्टेज | 3.3V (Typ.) |
| अर्ज | IA |
